: Products; MAI

ATE (Semiconductor Handler) MAI LMT (Linear Motor)

MAI

MAI Series Feeder MAI Software Option

MAI

MAI-H4T

Gantry Type: Single
Head Structure: 4 Heads (Supports Max Comp. 60mm)
Conveyor Type: Standard Belt / Chain Belt (Option) / Clinching (Option)
PCB Compatible Size: Min 75mm x 50mm x 1~5T / Max 600mm x 510mm x 1~5T
CPH: 7,500 (0.48 Sec) based on IPC-9850 QFP
Mounting Precision: ±0.05mm

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

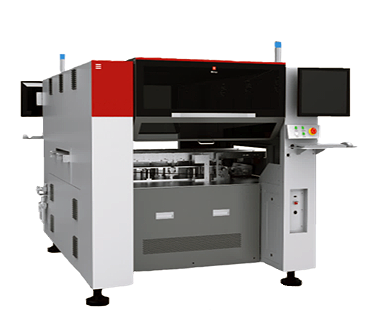

MAI-H6T

Gantry Type: Single
Head Structure: 6 Heads (Supports Max Comp. 60mm)
Conveyor Type: Standard Belt / Chain Belt (Option) / Clinching (Option)
PCB Compatible Size: Min 75mm x 50mm x 1~5T / Max 600mm x 510mm x 1~5T
CPH: 9,000 (0.40 Sec) based on IPC-9850 QFP
Mounting Precision: ±0.05mm

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

MAI-H8T

Gantry Type: Dual
Head Structure: 8 Heads (Supports Max Comp. 60mm)
Conveyor Type: Standard Belt / Chain Belt (Option)
PCB Compatible Size: Min 75mm x 50mm x 1~5T / Max 600mm x 510mm x 1~5T
CPH: 11,000 (0.33 Sec) based on IPC-9850 QFP
Mounting Precision: ±0.05mm

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

MAI-H12T

Gantry Type: Dual
Head Structure: 12 Heads (Supports Max Comp. 60mm)
Conveyor Type: Standard Belt / Chain Belt (Option)
PCB Compatible Size: Min 75mm x 50mm x 1~5T / Max 600mm x 510mm x 1~5T
CPH: 12,000 (0.30 Sec) based on IPC-9850 QFP
Mounting Precision: ±0.05mm

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

Radial Feeder: · Feeder for Lead cutting and feeding especially for vertical reel type component
· Special Option: Lead Bending
· Applicable Reel Hole Pitch: 12.7mm & 15mm

Spec

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

Axial Feeder: · Feeder for Lead cutting, bending and feeding especially for horizontal reel type component
· Form of production: Customized by width and hole pitch of reel

Spec

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

Stick Feeder

Device that supplies parts via a stick using air or a spring

Capable of loading multiple sticks
Equipped with an automatic stick replacement function when parts are depleted
Cylinder feeding method applicable depending on part weight
Equipped with Lead Cutting and Forming functions (Optional)

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

Bowl Feeder

Device for supplying bulk components via a constant vibration frequency

Capable of supplying up to 5 types of components (Levels 1–5)
Custom manufacturing format based on component material and shape
Vibration control via PLC
Individual vibration control applied per bowl (Patented)
Pickup unit escape function based on supply element characteristics (Option)

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

SLTF (Single Large Tray Feeder)

SLTF (Single Large Tray Feeder): · SLTF(Single Large Tray Feeder)
· A device that supplies parts via large-type trays, enabling efficient operation by feeding in pallet units.
· Supported Tray Size: 420mm x 290mm / Max 20 Trays

Spec

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

DLTF (Dual Large Tray Feeder)

DLTF (Dual Large Tray Feeder): · DLTF(Dual Large Tray Feeder)
· A device that simultaneously supplies two LARGE TYPE trays, enabling efficient operation by supplying in pallet units.
· Supported Tray Size: 290mm x 420mm / Max 60 Trays per unit
· Minimizes standby time through individual drive supply for the Left and Right trays during operation

Spec

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

M.E.S: · Collects and transmits production management data to a server
· Enables immediate response to process issues through real-time monitoring
· Tracks production and defect history using aggregated and transmitted data

Spec

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

Barcode: · Recognizes PCB or component barcodes and QR codes and transmits them to a server
· Tracks production and defect history
· Equipped with OCR inspection function (Optical Character Recognition System)

Spec

아이템	제품사양
도킹 방식 (Docking Type)	수직 도킹 테스트 핸들러 (Vertical Docking Test Handler)

«
‹
