LMT(리니어모터)

최고의 기술을 보유하고 선도하는 기업이 되겠습니다.

담당자연결 - Tel 041-559-8749/010-3885-5803 Fax 041-559-8738 Email lmtsales@mirae.com

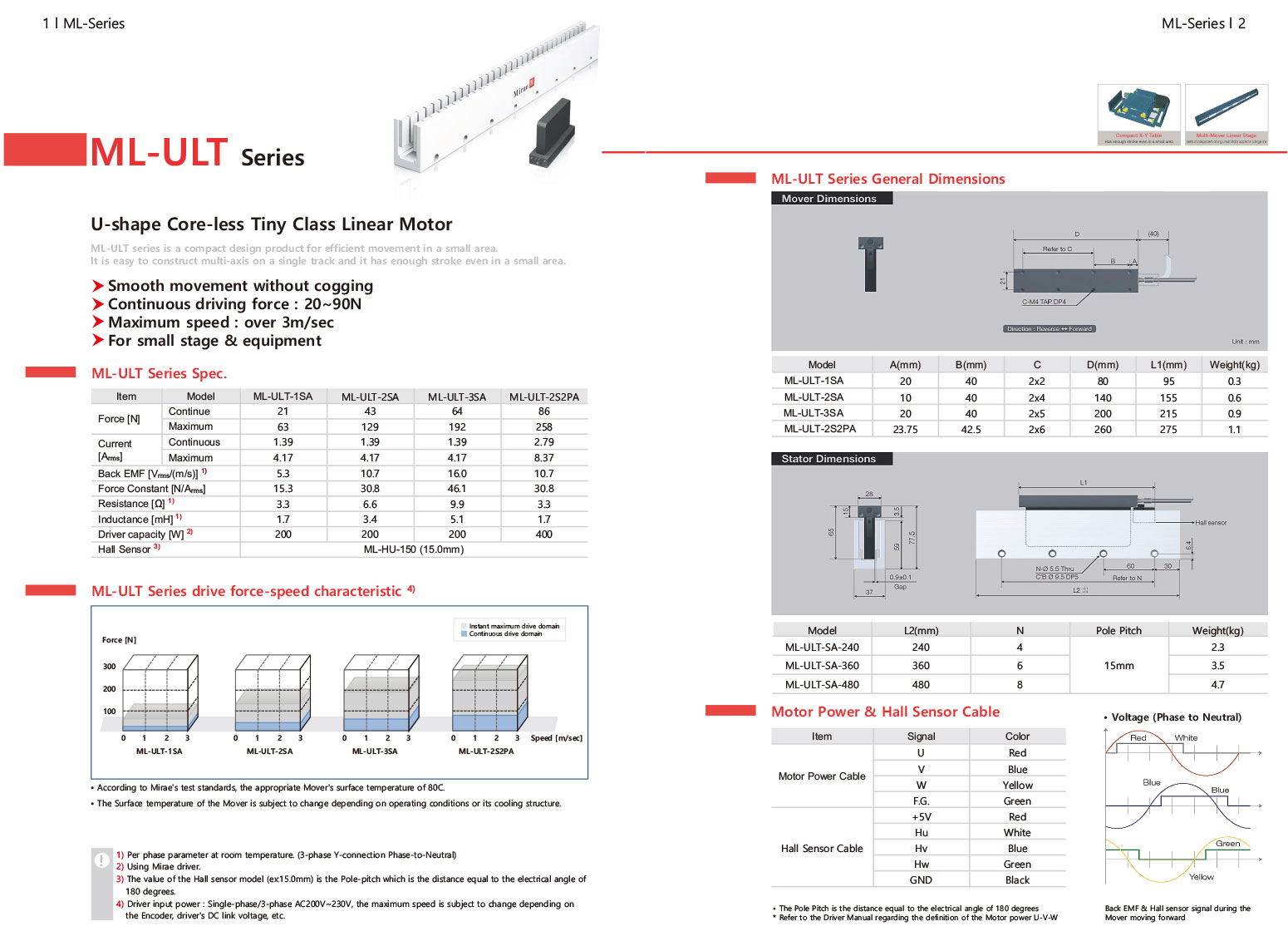

01ML-ULT Series

U-shape Core-less Tiny Class Linear Motor

ML-ULT Series
  • ML-ULT series is a compact design product for efficient movement in a small area. It is easy to construct multi-axis on a single track and it has enough stroke even in a small area.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 20~90N
  • - Maximum speed : over 3m/sec
  • - For small stage & equipment
catalog

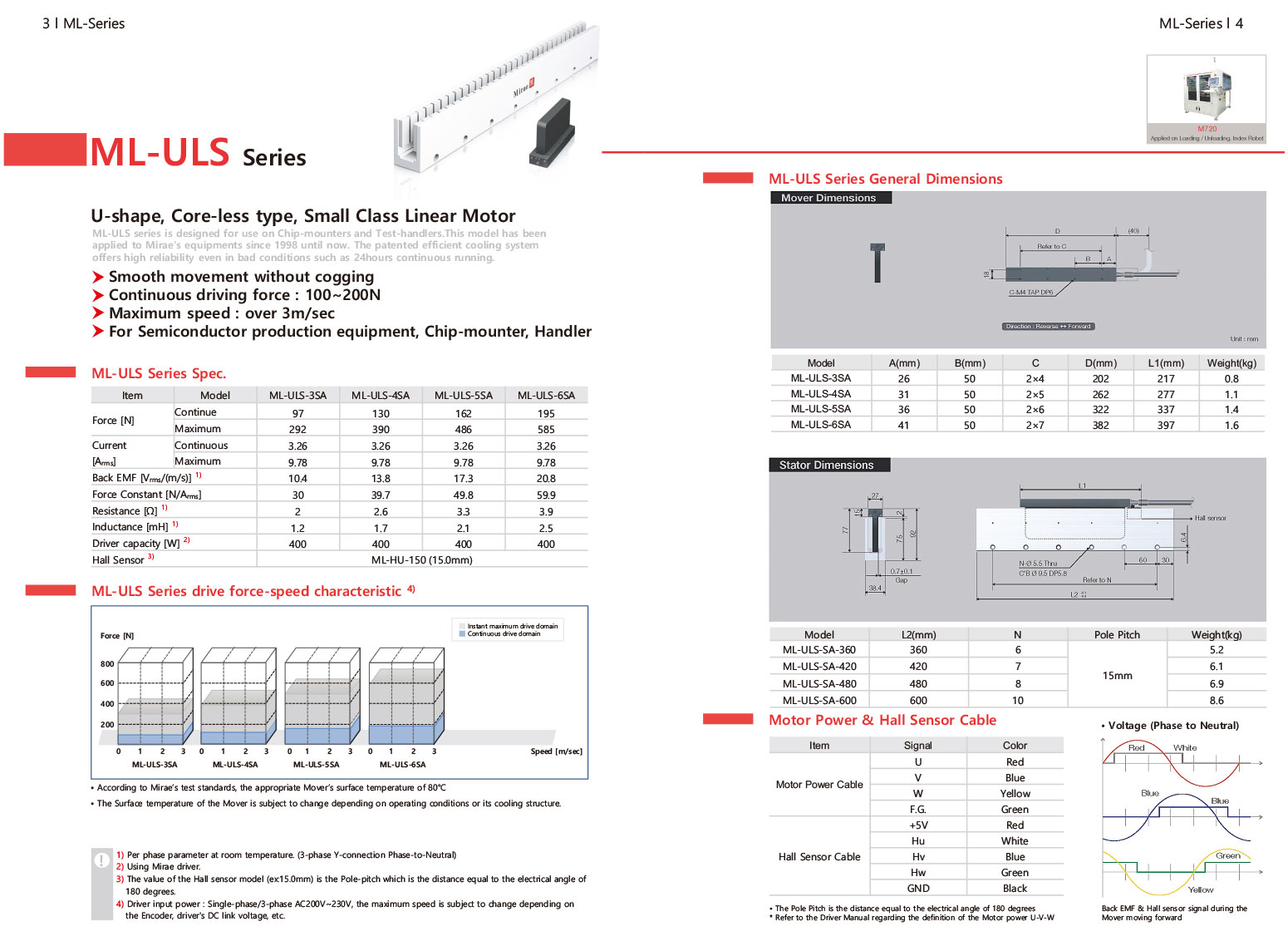

02ML-ULS Series

U-shape, Core-less type, Small Class Linear Motor

ML-ULT Series
  • ML-ULS series is designed for use on Chip-mounters and Test-handlers. This model has been applied to Mirae's equipments since 1998 until now. The patented efficient cooling system offers high reliability even in bad conditions such as 24hours continuous running.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 100~200N
  • - Maximum speed : over 3m/secc
  • - For Semiconductor production equipment, Chip-mounter, Handler
catalog

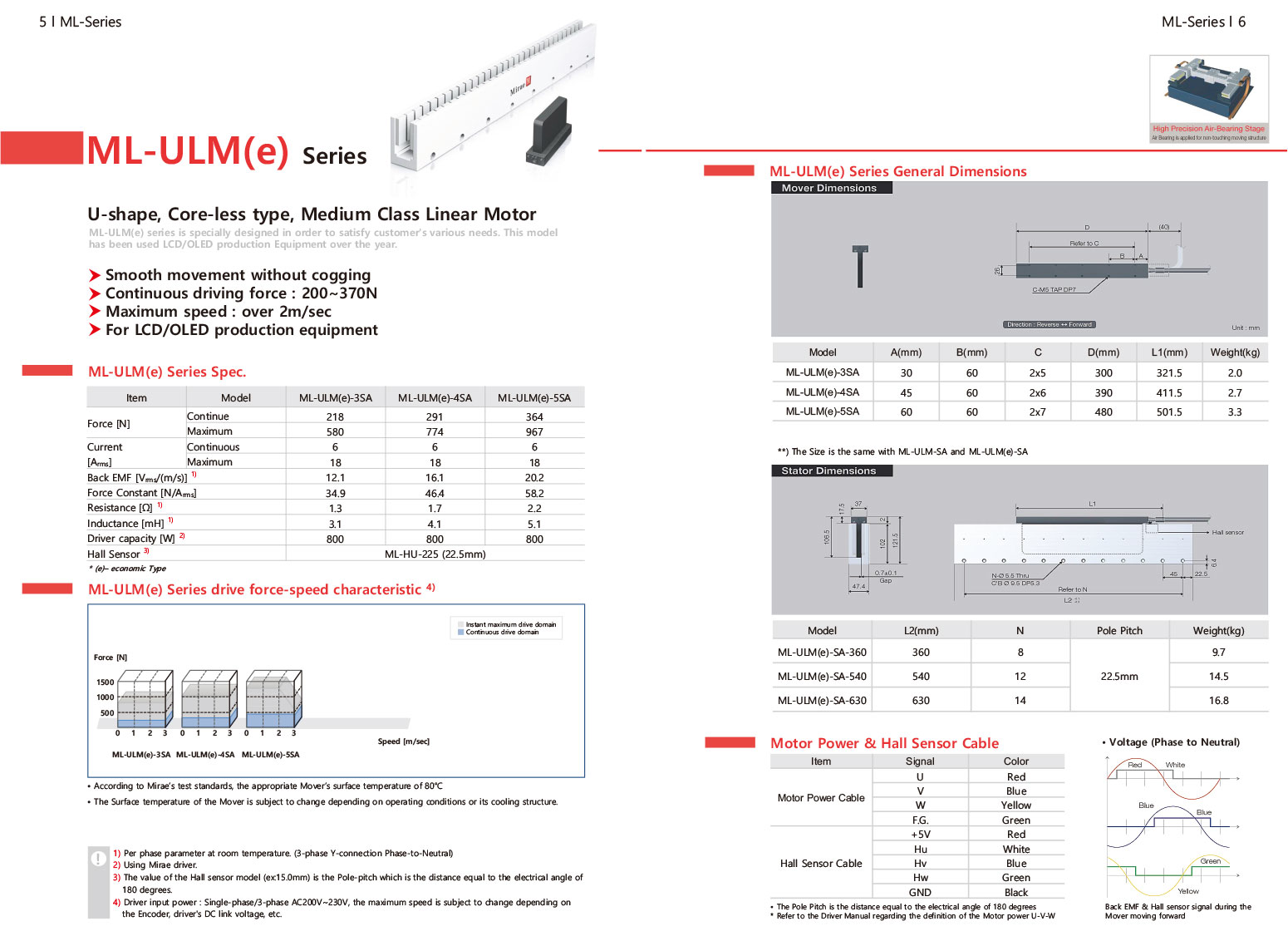

03ML-ULM(e) Series

U-shape, Core-less type, Medium Class Linear Motor

ML-ULM(e) Series
  • ML-ULM(e) series is specially designed in order to satisfy customer's various needs. This model has been used LCD/OLED production Equipment over the year.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 200~370N
  • - Maximum speed : over 2m/sec
  • - For LCD/OLED production equipment
catalog

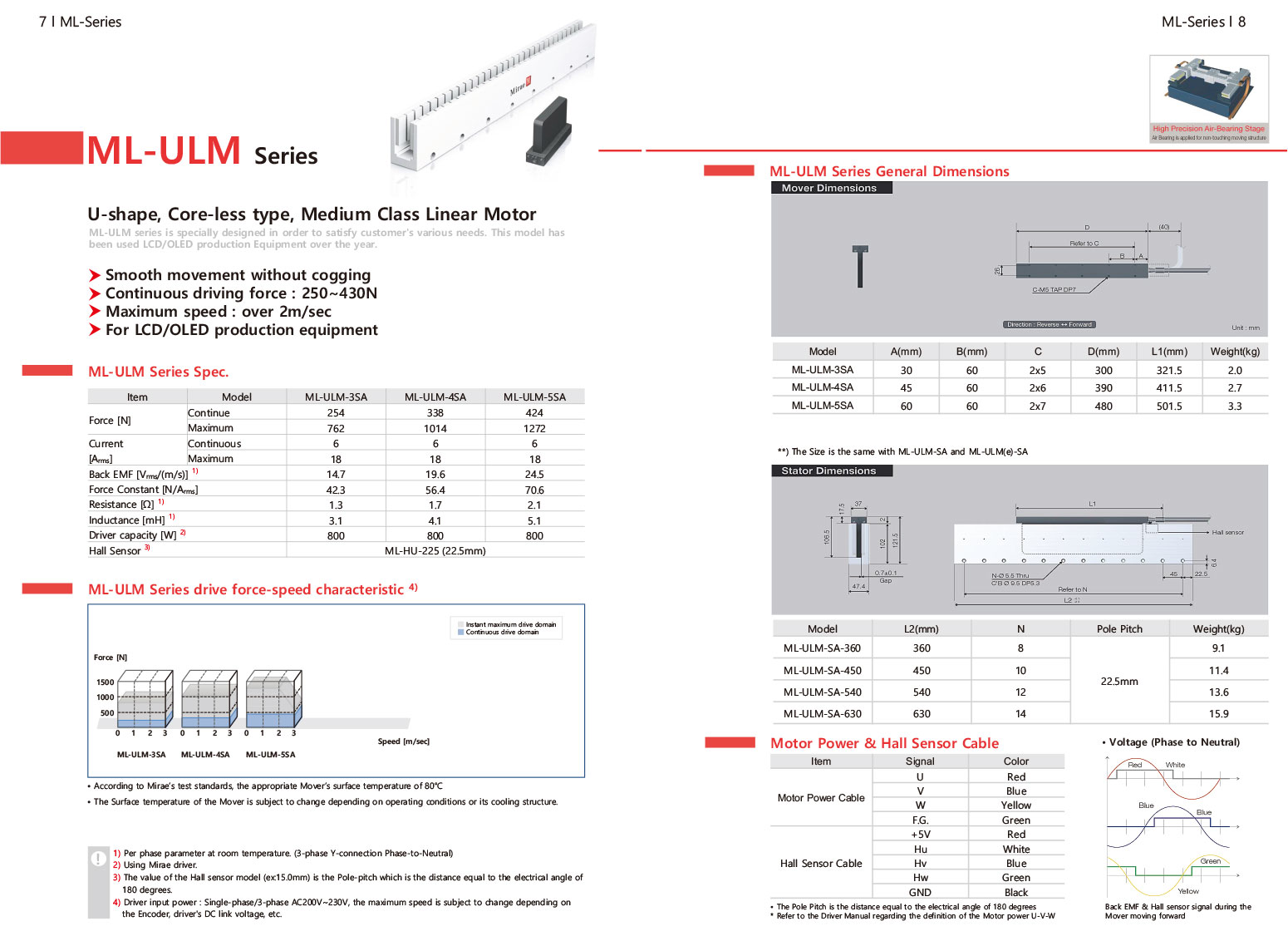

04ML-ULM Series

U-shape, Core-less type, Medium Class Linear Motor

ML-ULM Series
  • ML-ULM series is specially designed in order to satisfy customer's various needs. This model has been used LCD/OLED production Equipment over the year.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 250~430N
  • - Maximum speed : over 2m/sec
  • - For LCD/OLED production equipment
catalog

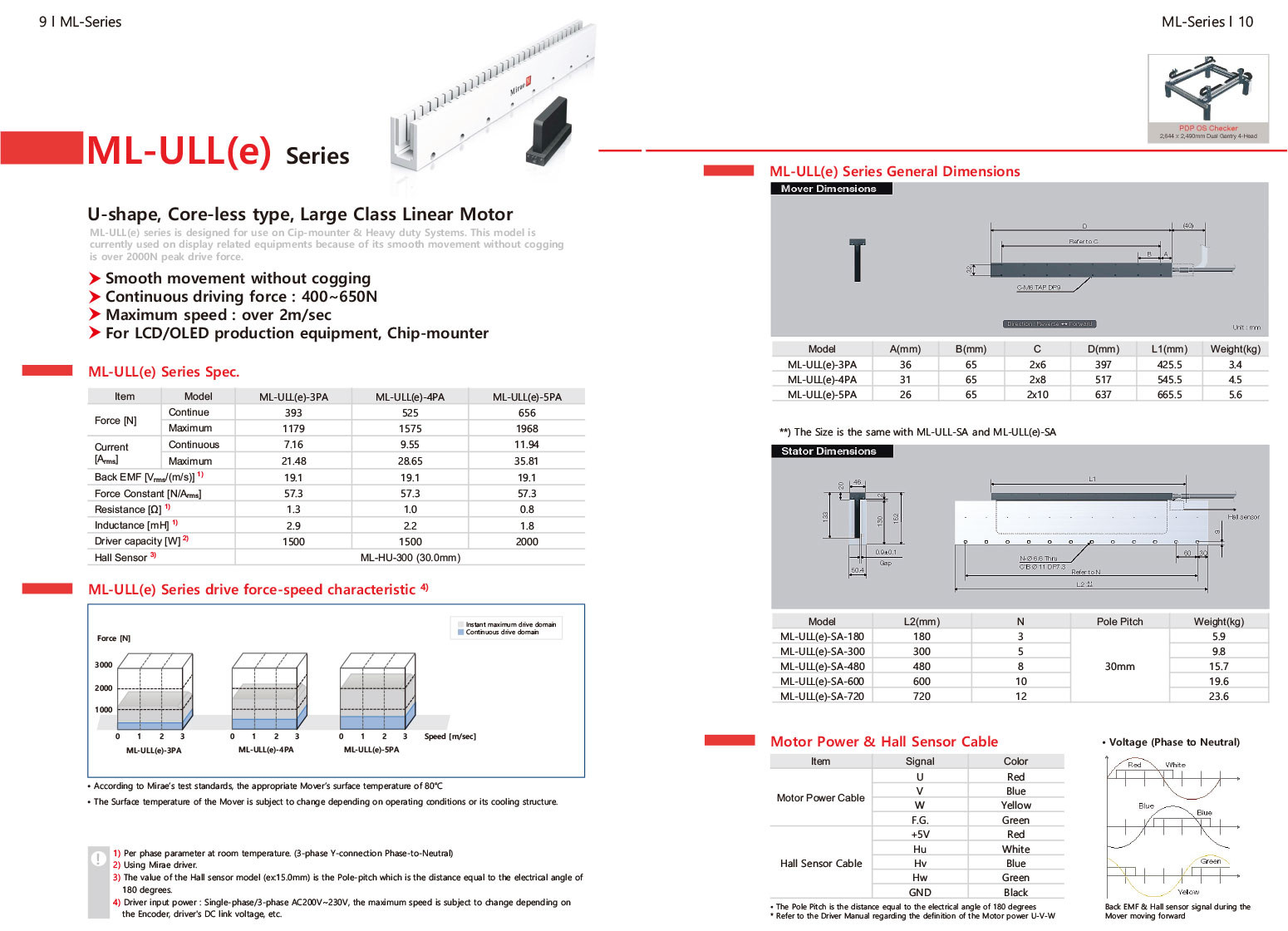

05ML-ULL(e) Series

U-shape, Core-less type, Large Class Linear Motor

ML-ULL(e) Series
  • ML-ULL(e) series is designed for use on Cip-mounter & Heavy duty Systems. This model is currently used on display related equipments because of its smooth movement without cogging is over 2000N peak drive force.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 400~650N
  • - Maximum speed : over 2m/sec
  • - For LCD/OLED production equipment,
      Chip-mounter
catalog
06ML-ULL Series

U-shape, Core-less type, Large Class Linear Motor

ML-ULL Series
  • ML-ULL series is designed for use on Cip-mounter & Heavy duty Systems. This model is currently used on display related equipments because of its smooth movement without cogging is over 2500N peak drive force.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 500~850N
  • - Maximum speed : over 2m/sec
  • - For LCD/OLED production equipment,
      Chip-mounter
catalog
07ML-ULX(e) Series

U-shape, Core-less type, Xtra large Class Linear Motor

ML-ULX Series
  • ML-ULX(e) is designed for use on Heavy duty systems, such as big size LCD/OLED/SOLAR production equipment. This model is currently used on display related equipments because of its smooth movement without cogging.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 700~1,400N
  • - Maximum speed : over 2.5m/sec
  • - For heavy duty systems, such as
      LCD/OLED/SOLAR equipment
catalog

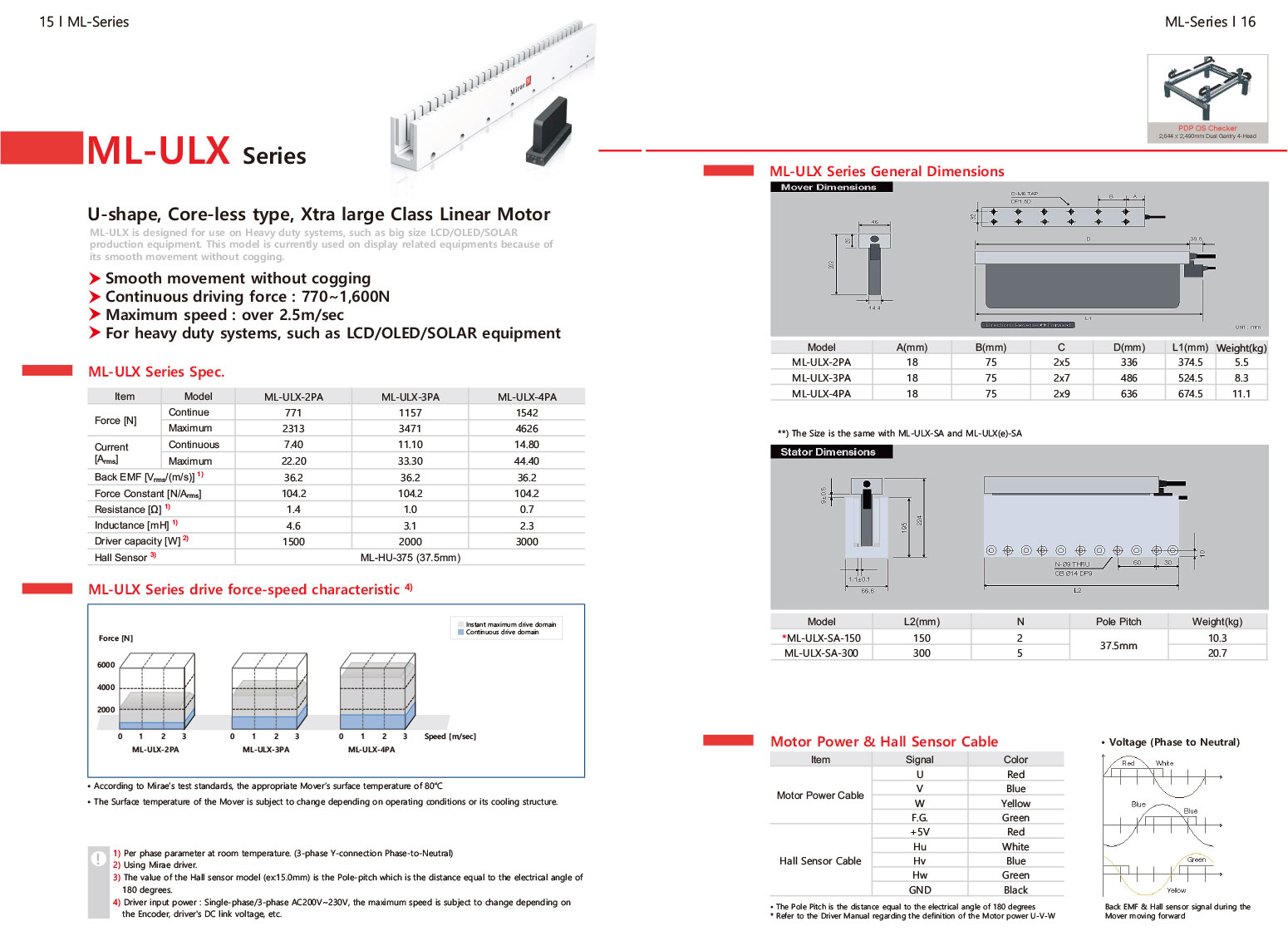

08ML-ULX Series

U-shape, Core-less type, Xtra large Class Linear Motor

ML-ULX Series
  • ML-ULX is designed for use on Heavy duty systems, such as big size LCD/OLED/SOLAR production equipment. This model is currently used on display related equipments because of its smooth movement without cogging.
  •
  • - Smooth movement without cogging
  • - Continuous driving force : 770~1,600N
  • - Maximum speed : over 2.5m/sec
  • - For heavy duty systems, such as
      LCD/OLED/SOLAR equipment
catalog
