ML-PCT

ML-PCS

ML-PCM

ML-PCL(e)

ML-PCL

Platen, Core type, Tiny Class Linear Motor

ML-PCT has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
- High density force
- Continuous driving force : 43~172N
- Maximum speed : over 3m/sec
- Most economic design solution

Platen, Core type, Small Class Linear Motor

ML-PCS series has the most improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only on one side : therefore, the cost of this system is lower compared to the U-shape Linear Motors.
- High density force
- Continuous driving force : 150~400N
- Maximum speed : over 2m/sec
- Most economic design solution

Platen, Core type, Medium Class Linear Motor

ML-PCM has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
- High density force
- Continuous driving force : 220~660N
- Maximum speed : over 2m/sec
- Most economic design solution

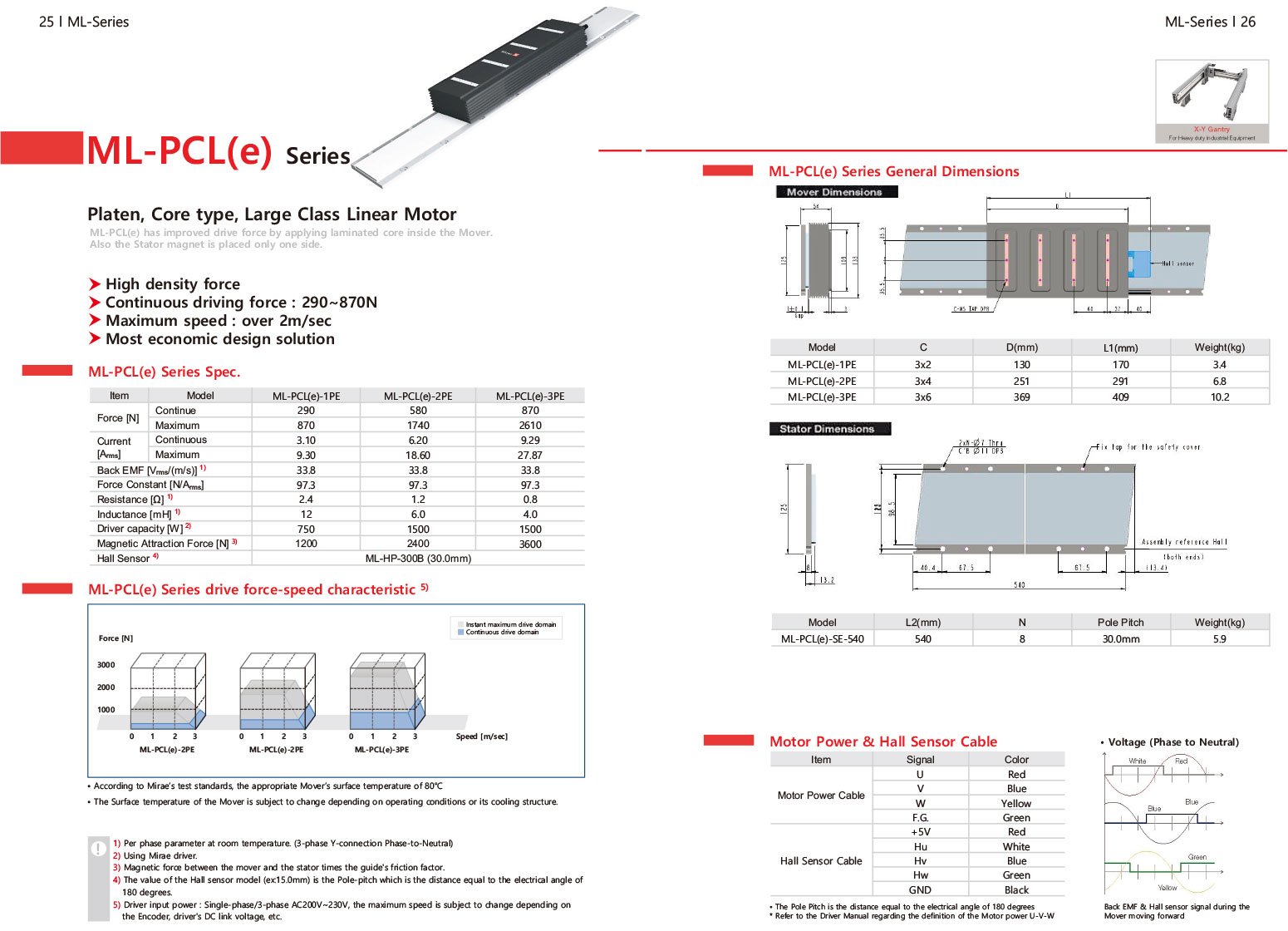

Platen, Core type, Large Class Linear Motor

ML-PCL(e) has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
- High density force
- Continuous driving force : 290~870N
- Maximum speed : over 2m/sec
- Most economic design solution

Platen, Core type, Large Class Linear Motor

ML-PCL has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
- High density force
- Continuous driving force : 335~1000N
- Maximum speed : over 2m/sec
- Most economic design solution
